• 系统组成

由水上固定平台、供电保障系统、数据采集和无线通讯系统、后端数据管理展示软件系统以及核心监测仪器构成。

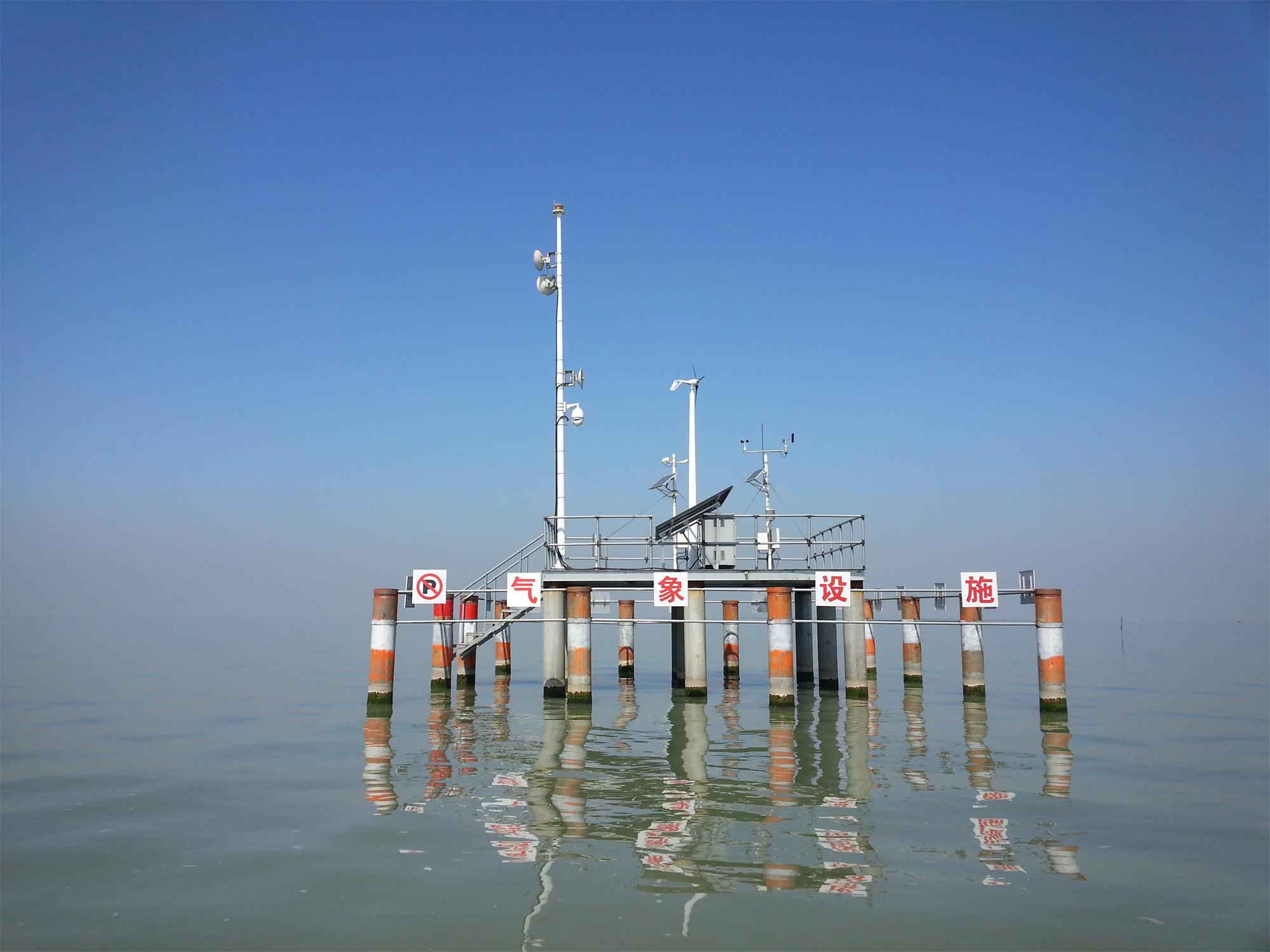

The fixed platform for online automatic ecological monitoring on water is based on a large fixed platform built on the water surface, with online water quality multi-parameter analyzers, nutrient analyzers, meteorological instruments, and other advanced technologies such as modern sensor technology, automatic control, and the Internet of Things, combined with specialized data management and analysis software, to form an offshore online ecological automatic monitoring system suitable for large water bodies.

• 可监测参数

常规水质参数：水温、电导、盐度、pH/ORP、浊度、溶解氧、叶绿素a、蓝绿藻、fDOM（荧光溶解有机质）等

营养盐参数：氨氮、硝氮、亚硝氮、硝酸盐、总磷、总氮

污染物参数：COD、TOC、DOC、UV254、TSS、色度、光谱指纹图谱和光谱报警等

水文参数：水位、流速、流向、波浪等

气象参数：风速、风向、气温、相对湿度、降雨量、能见度、辐射等

Monitoring parameters:监测参数：

Conventional water quality parameters: water temperature, conductivity, salinity, pH/ORP, turbidity, dissolved oxygen, chlorophyll a, blue-green algae, fDOM (fluorescence dissolved organic matter), etc

Nutrient parameters: ammonia nitrogen, nitrate nitrogen, nitrite nitrogen, nitrate, total phosphorus, total nitrogen

Pollutant parameters: COD, TOC, DOC, UV254, TSS, chromaticity, spectral fingerprint, and spectral alarm, etc

Hydrological parameters: water level, flow velocity, flow direction, waves, etc

Meteorological parameters: wind speed, direction, temperature, relative humidity, rainfall, visibility, radiation, etc

• 系统特点

（1）水上固定平台，永久性建筑，空间大、监测参数多、可扩展性强，为开展多方面的水上原位实验提供了更大的便利和更佳的现场实验条件。

（2）长期稳定、维护量小，整体运维成本较低。

（3）连续、及时、准确的监测目标水域的水文、水质、气象等生态环境的变化情况，监测参数超标或系统状态异常时显示并报警。

（4）多种可选的无线通讯方式远程传输数据，可随时随地获得实时监测数据。

（5）自动运行，停电保护，来电自动恢复。

（6）利用太阳能和风能等绿色供电系统。

（7）可以加装高清视频监控系统，实时监控平台及附近水域的情况。

Platform Features平台特点

(1) A fixed platform on water, a permanent building with large space, multiple monitoring parameters, and strong scalability, provides greater convenience and better on-site experimental conditions for conducting various in-situ experiments on water.

(2) Long term stability, low maintenance volume, and overall low operation and maintenance costs.

(3) Continuously, timely, and accurately monitor the changes in the hydrological, water quality, meteorological, and other ecological environments of the target water area. Display and alarm when the monitoring parameters exceed the standard or the system status is abnormal.

(4) Multiple optional wireless communication methods can remotely transmit data, allowing real-time monitoring data to be obtained anytime and anywhere.

(5) Automatic operation, power outage protection, automatic recovery of incoming calls.

(6) Utilize green power supply systems such as solar and wind energy.

(7) It is possible to install a high-definition video monitoring system to monitor the real-time situation of the platform and nearby waters.

(8) Truly unmanned.。

产品资料：泽铭科技-水上监测平台.pdf
