Water Quality-Monitoring Buoy
Integrated Equipment

Physical parameters: dissolved oxygen, temperature, pH, salinity, turbidity, chlorophyll, blue-green algae

Chemical parameters: ammonia nitrogen, nitrate nitrogen, nitrite nitrogen, orthophosphate, total phosphorus/total nitrogen, COD

Meteorological parameters: wind speed, wind direction, barometric pressure, temperature, humidity, illumination and rainfall

Hydrodynamic parameters: flow velocity, flow direction, and non-directional

Detailed

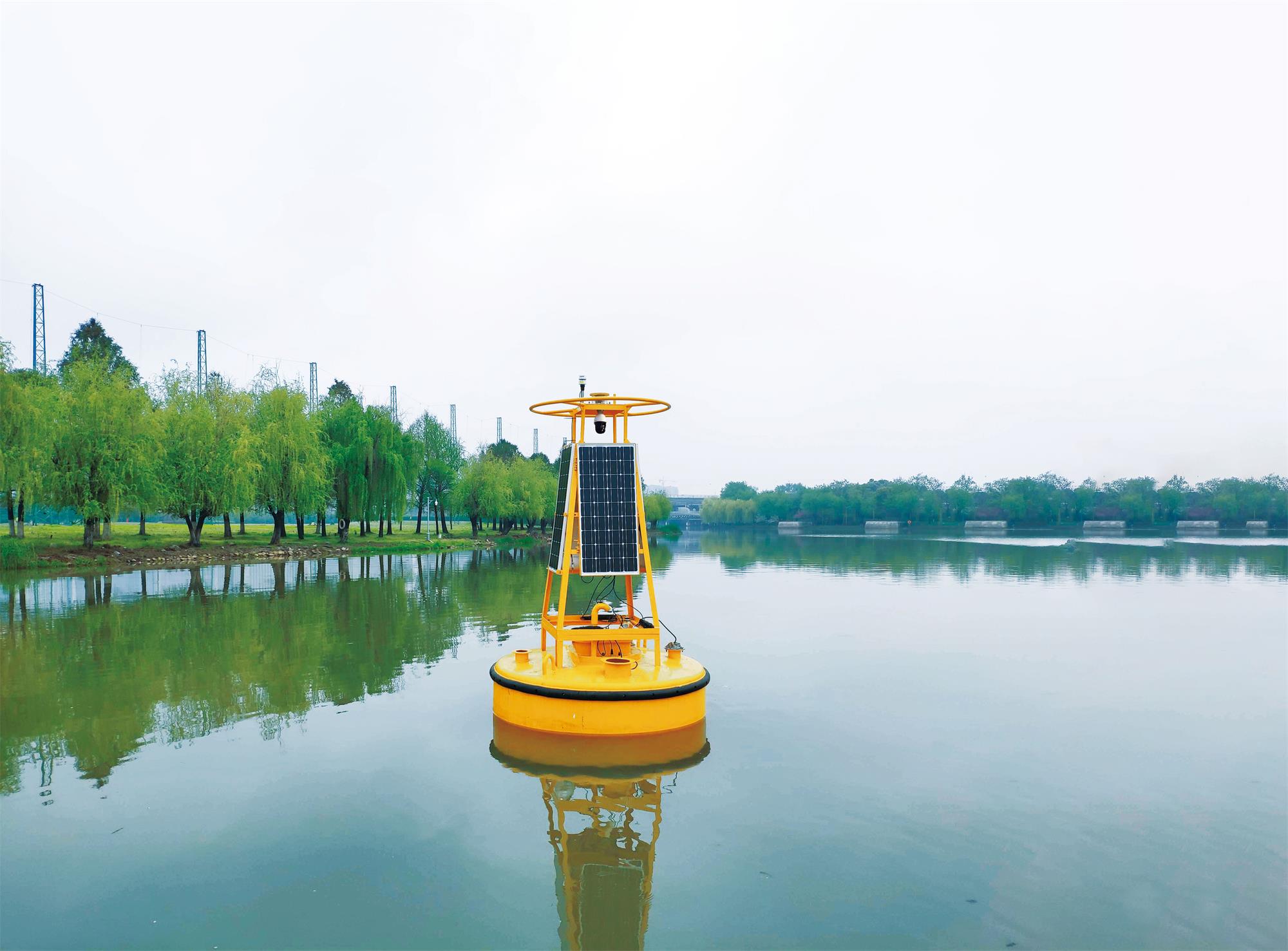

Water quality ecological buoy is commonly used for in-situ water quality ecological monitoring in natural  environments such as oceans and lakes. It is a complete system by itself, carrying instruments for measurement and wireless data transmission and self-powered equipment, and capable of withstanding  harsh field conditions. It is also characterized by multiple measurement parameters and low operation  and maintenance work loading, and in addition, the placement point can meet the relevant regulations  and requirements of the relevant maritime authorities. The functions are summarized as follows.


Product Features:

-Data storage and processing functions

-System detection and control functions

-Wireless data transmis-sion function

-Abnormal condition  alarm function

-Self-powered function

-Global positioning function

-Excellent environmental  tolerance


Application Fields:

Early warning for water sources;

Red tide algal blooms monitoring  and early warning;

Water quality monitoring of  rivers, lakes, and reservoirs;

Marine and coastal water quality  survey;

Water quality evaluation of aquaculture areas;

Eutrophication monitoring and  investigation;

Algae and plankton biomass estimation and distribution survey;

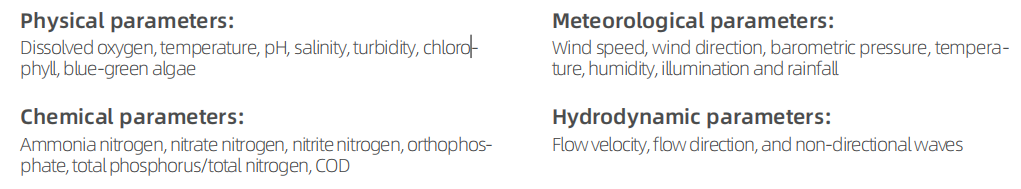

Monitoring Parameters:

Water Quality-Monitoring Buoy(图1)

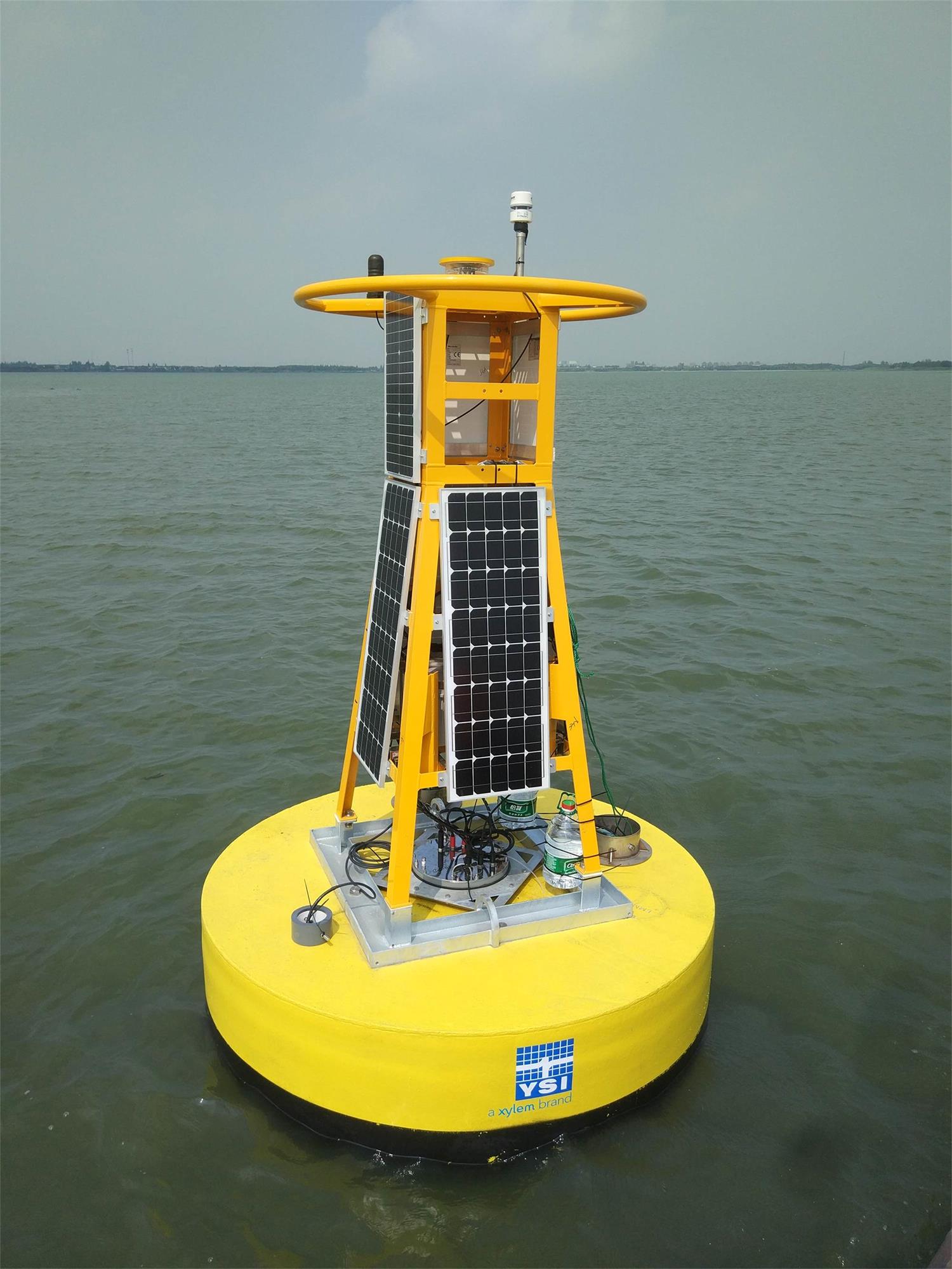

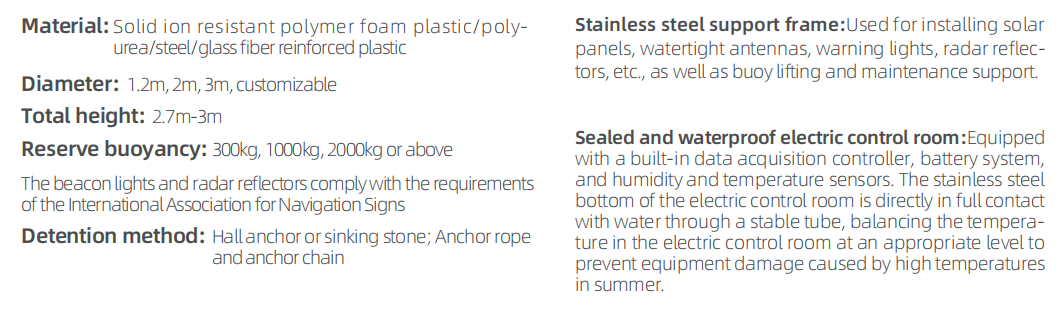

Features Of Buoy:

Water Quality-Monitoring Buoy(图2)
